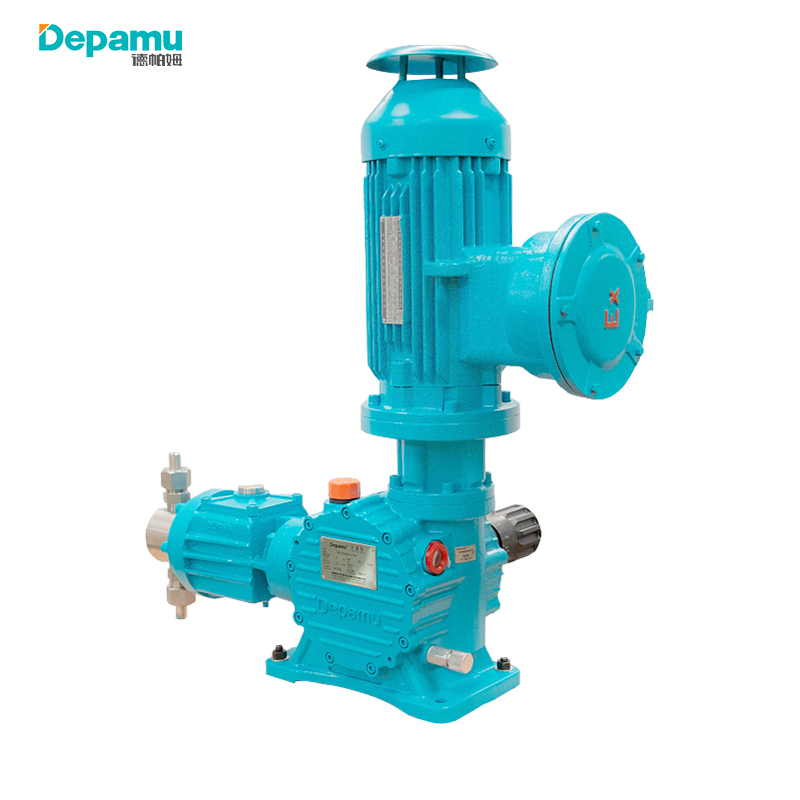

Depamu Plunger Metering Pump Units for Chemical Processing & Petrochemicals
Abstract
In the demanding environments of chemical processing and petrochemical production, precision fluid metering is not merely an operational advantage—it is a critical requirement for product quality, process safety, and economic efficiency. Depamu Plunger Metering Pump Units have emerged as a robust solution for these industries, offering high-pressure capabilities, exceptional metering accuracy, and versatile configuration options. This article provides a comprehensive technical examination of Depamu plunger metering pump units, exploring their working principles, design features, performance specifications, material options, and application scope within chemical and petrochemical contexts.
1. Introduction
The chemical and petrochemical industries rely heavily on the accurate injection of additives, catalysts, reactants, and treatment chemicals into process streams. Whether in oil field extraction, refining operations, or chemical synthesis, the ability to precisely control flow rates under varying pressure conditions directly impacts product yield, quality consistency, and operational safety.
Depamu (Hangzhou) Pumps Technology Co., Ltd., an ISO9001-certified manufacturer with over 17 years of industry presence, has developed a range of plunger metering pump units designed specifically to meet these rigorous industrial demands. The DP(M)WA series and DP(M)DA series represent the company's flagship offerings, combining robust mechanical design with advanced metering technology to deliver reliable performance in some of the most challenging process environments.
2. Working Principle of Plunger Metering Pumps
The fundamental operating principle of Depamu plunger metering pumps centers on positive displacement through reciprocating plunger action. As the plunger moves into the dosing head, it displaces fluid volume, forcing the discharge valve open while the suction valve closes—delivering a precise volume of fluid to the process stream. Conversely, when the plunger retracts, the negative pressure created within the dosing head draws fresh fluid through the suction valve, preparing the chamber for the next cycle.
This reciprocating motion is achieved through a sophisticated mechanical transmission system. The motor drives a worm gear pair, which converts rotary motion into linear reciprocating movement via an eccentric mechanism. Depamu's patented integrated sleeve adjustable eccentric transmission mechanism represents a key engineering innovation, enabling smooth, reliable stroke adjustment across the full 0-100% range.
3. Design Features and Engineering Excellence
3.1 Precision Metering Capability
Depamu plunger metering pumps are engineered to achieve metering accuracy of ±0.5% within the 10-100% stroke length adjustment range. This level of precision ensures that chemical dosing remains consistent even as process conditions fluctuate—a critical factor in maintaining product quality in petrochemical applications.
3.2 High-Performance Sealing Technology
The pumps incorporate high-performance plungers with specially engineered packing and sealing components. These advanced sealing systems deliver extended service life and maintain excellent sealing integrity even when handling aggressive chemicals under high pressure. For applications requiring enhanced corrosion resistance, Depamu offers pumps with ceramic plunger options in the DP(M)DA series.
3.3 High-Precision Valve Systems
Inlet and outlet check valves are manufactured to tight tolerances, ensuring reliable metering accuracy and consistent fluid flow characteristics. The precision-engineered valve design minimizes pressure drop and prevents flow irregularities that could compromise dosing accuracy.
3.4 Versatile Flow Rate Adjustment
Depamu offers multiple flow rate adjustment modalities to accommodate diverse operational requirements:
-
Manual adjustment for local control applications
-
Electrical adjustment via electric actuator for automated remote control
-
Pneumatic adjustment for hazardous area installations
-
Frequency conversion adjustment for precise variable-speed control
3.5 Multi-Head Configuration Options
A distinctive feature of Depamu plunger metering pumps is the ability to configure multiple pump heads in parallel—up to twelve units in a single assembly. This configuration serves two primary purposes: reducing discharge pulsation by phasing multiple plungers, or enabling proportional pumping of different fluids by feeding separate streams through individual heads.
4. Technical Performance Specifications
4.1 Flow and Pressure Capabilities
Depamu plunger metering pumps are designed to handle a broad range of operating conditions:
-
Maximum flow rate per single pump head: ≤ 12,100 L/h
-
Maximum discharge pressure: ≤ 228 MPa (approximately 33,000 psi)
The DP(M)WA series exemplifies this performance range, with models available to accommodate plunger diameters from 8mm to 50mm. A representative selection demonstrates the inverse relationship between flow rate and discharge pressure:
| Plunger Diameter (mm) | Flow Rate Range (L/h) | Discharge Pressure Range (MPa) |
|---|---|---|
| 8 | 1.0 - 61.7 | Up to 55.7 |
| 16 | 7.4 - 25.0 | Up to 22.0 |
| 30 | 1.8 - 105 | Up to 5.7 |
| 50 | 0.7 - 302 | Up to 1.4 |
Data compiled from Depamu DP(M)WA series specifications
This wide performance envelope allows a single pump series to address applications ranging from low-flow, high-pressure chemical injection to high-volume, lower-pressure process dosing.
4.2 Drive and Transmission
The drive system features an integrated worm gear reduction mechanism characterized by low noise operation and high efficiency. Oil-immersed bath lubrication ensures long-term reliability of all transmission components, reducing maintenance frequency and extending service life.
5. Materials of Construction
Chemical and petrochemical applications frequently involve corrosive, abrasive, or high-temperature fluids. Depamu addresses these challenges through extensive material selection options:
-
Stainless steels: 304, 316, 316L for general chemical service
-
High-alloy materials: 904L, Hastelloy C for aggressive corrosive environments
-
High polymers: Specialized polymer materials for specific chemical compatibility requirements
This material flexibility enables Depamu pumps to handle fluids ranging from deionized water and mild chemicals to aggressive acids, caustics, and hydrocarbon streams.
6. Applications in Chemical Processing and Petrochemicals
6.1 Oil and Gas Production
In upstream oil and gas operations, Depamu plunger metering pumps are employed for injecting corrosion inhibitors, scale inhibitors, demulsifiers, and other production chemicals into well streams. The high-pressure capability—up to 228 MPa—makes these pumps suitable for both onshore and offshore applications where injection pressures often exceed 100 MPa.
6.2 Refinery Operations
Within refineries, these metering pumps serve critical functions including:
-
Catalyst injection into cracking and hydrotreating units
-
Chemical additive dosing for product specification control
-
Corrosion inhibitor injection into overhead systems
6.3 Chemical Manufacturing
Chemical plants utilize Depamu plunger metering pumps for precise reactant feeding, particularly when:
-
High viscosity fluids require positive displacement pumping
-
High-pressure reactions demand injection against system pressure
-
Precise stoichiometric ratios must be maintained for product quality
6.4 Specialty Applications
The pump design accommodates several specialized service conditions:
-
Jacketed pump heads for heating or cooling of temperature-sensitive fluids
-
Multi-head configurations for simultaneous dosing of multiple chemicals
-
High-temperature service with appropriate material selection
7. Safety Considerations
Depamu plunger metering pumps are not equipped with internal pressure relief devices. For applications where overpressure conditions could occur—such as blocked discharge lines or closed valves—installation of an external safety relief valve on the discharge pipeline is recommended.
When specified for hazardous area installations, Depamu can configure pumps with explosion-proof motors and pneumatic actuation options to meet ATEX and other international certification requirements.
Depamu Plunger Metering Pump Units represent a well-engineered solution for the demanding fluid metering requirements of chemical processing and petrochemical industries. With pressure capabilities reaching 228 MPa, flow rates up to 12,100 L/h, and metering accuracy of ±0.5%, these pumps deliver performance comparable to established European brands at a competitive price point.
The combination of robust mechanical design, versatile material options, flexible configuration capabilities, and multiple control modalities makes Depamu plunger metering pumps suitable for a wide spectrum of applications—from precision chemical injection in oil fields to complex multi-component dosing in chemical manufacturing.
As process industries continue to demand higher accuracy, greater reliability, and increased operational flexibility, Depamu's focus on continuous improvement and technical innovation positions its plunger metering pump units as a compelling choice for engineers and operations professionals seeking dependable fluid metering solutions.
