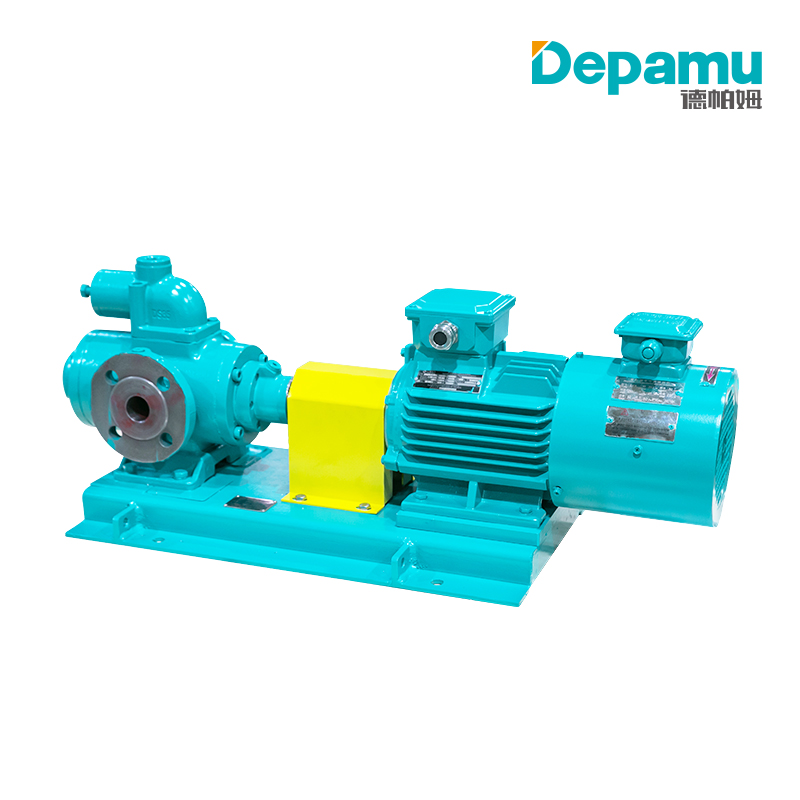

The Depamu Triple Screw Pump: A Versatile Solution for Lube Oil, Diesel, Bitumen, and Fuel Oil
In the complex world of industrial fluid handling, the selection of an appropriate pump is critical to operational efficiency, safety, and cost-effectiveness. Among the various positive displacement pump technologies available, the three-screw pump stands out for its unique combination of simplicity, reliability, and versatility. The Depamu Triple / Three Screw Pump exemplifies these qualities, offering a robust solution for a wide spectrum of demanding applications, from the transfer of lubricating oils to the challenging handling of heavy bitumen and fuel oils.
Design and Working Principle
The three-screw pump is a rotary positive displacement pump that operates on a straightforward yet highly effective principle. It consists of three intermeshing screws—a central, driven power rotor and two identical, symmetrically arranged idler rotors—housed within a close-fitting pump casing or liner . As the power rotor turns, it drives the idler rotors, and the meshing threads of the screws create a continuous series of sealed cavities or "fluid closures" .
These cavities trap the fluid at the suction port and, as the screws rotate, the enclosed volumes move axially along the length of the screws toward the discharge port. This action provides a smooth, continuous, and nearly pulse-free flow . The capacity and pressure of the pump are determined by the geometry of the screws and the length of the pumping element, respectively . This design results in a pump with a surprisingly small number of moving parts: just the three rotors and a single mechanical seal .
Key Advantages
The simple and robust design of the three-screw pump translates into several key operational advantages that make it suitable for a wide range of services. For Depamu pumps, these are some of the standout features that support its use across various industries.
A primary advantage is its pulse-free, low-noise operation. The continuous, non-pulsating flow eliminates the need for pulsation dampeners and reduces overall system vibration, leading to quieter operation and longer component life . This is a critical benefit in precision applications and environments with strict noise regulations.
Furthermore, the three-screw pump is known for its high energy efficiency and long service life. Its tight internal clearances and axial hydraulic balance reduce internal slip and friction . The rotors are supported by a hydrodynamic film of the pumped fluid, preventing metal-to-metal contact and minimizing wear . This design, along with features like gas-nitrided rotors, ensures an exceptionally long service life . Unlike two-screw pumps with timed timing gears, three-screw pumps transmit torque through rolling contact between the rotors, eliminating a significant potential maintenance point . The robust design, with features like oil-immersed lubrication for drive components, further enhances reliability and longevity .
Versatility Across Fluids
The Depamu triple screw pump's design makes it an ideal solution for a wide array of fluids, including those mentioned in its designation: lube oil, diesel, bitumen, and fuel oil.
For lubricating oils, the three-screw pump is an industry standard. It is ideal for clean, lubricating fluids as the pumped medium itself serves as the lubricant for the rotating elements . Its ability to provide stable, reliable flow makes it a perfect choice for lubrication systems in turbines, engines, compressors, and other rotating machinery .
When handling lighter hydrocarbons like diesel and fuel oil, the pump maintains its high efficiency and pressure capabilities. Its ability to handle low-viscosity fluids while still generating significant pressure boost, with a capacity range suitable for large-volume transfer, makes it a prime choice for fuel injection, transfer, and booster services .
Perhaps the most challenging application is handling bitumen, a highly viscous fluid that requires careful management of temperature and pressure. The modern three-screw pump has replaced traditional centrifugal and timed Twin-Screw Pumps in asphalt services due to its superior reliability . A key feature for this application is the heating jacket, which allows for precise temperature control of the pump head. This prevents the bitumen from cooling and solidifying within the pump, ensuring smooth operation and continuous flow . The pump's positive displacement nature ensures that it is not affected by the viscosity swings that plague centrifugal pumps in this service, offering a reliable transfer regardless of temperature . Industry specifications for similar pumps indicate suitability for viscous fluids up to 760 cSt and temperatures up to 200°C, demonstrating the thermal capability of this technology .
Conclusion
The Depamu Triple / Three Screw Pump is a testament to the effectiveness of the three-screw pump design. By combining a simple, durable construction with high efficiency, low maintenance, and the ability to handle a remarkable range of fluid viscosities and temperatures, it has become an indispensable tool in various industries. Whether tasked with the precise lubrication of vital machinery, the safe transfer of volatile fuels, or the demanding pumping of high-temperature bitumen, the Depamu three-screw pump provides the reliability and performance required for modern industrial operations. Its inherent design and available features like heating jackets and safety valves ensure that it can meet and exceed the rigorous demands placed on industrial pumping equipment
