The Depamu Multi-Head Hydraulic Diaphragm Metering Pump: A Paradigm of Precision and Reliability in Fluid Handling

In the intricate world of industrial fluid management, the ability to deliver precise, repeatable, and safe volumes of liquid is not merely a convenience; it is a critical operational necessity. From the precise injection of catalysts in petrochemical cracking to the delicate dosing of additives in pharmaceutical formulation, metering pumps stand as the silent sentinels of process control. Among the vanguard of this technology is the Depamu Multi-Head Hydraulic Diaphragm Metering Pump, a sophisticated piece of engineering that exemplifies the advancements in high-pressure, high-accuracy fluid conveyance .

Fundamental Principles: The Hydraulic Diaphragm Advantage

At its core, the metering pump is a positive displacement device designed to deliver a precise flow rate against a specified system pressure. The Depamu series, particularly the DP(M)ZA model, leverages the hydraulic diaphragm principle to achieve this with unparalleled safety and efficiency . Unlike mechanical Diaphragm Pumps that rely on a direct mechanical link to flex the diaphragm, the hydraulic diaphragm pump utilizes a hydraulic fluid as an intermediary.

This design offers several key advantages, primarily in operational safety and longevity. In a hydraulic diaphragm pump, a plunger or piston reciprocates within a hydraulic fluid chamber. The movement of this plunger pressurizes the hydraulic fluid, which in turn flexes the process-side diaphragm . Because the diaphragm physically isolates the process fluid from the moving mechanical parts, the risk of leakage—a critical concern when handling hazardous, corrosive, or valuable fluids—is virtually eliminated . This "leak-free" operation is further enhanced by the vertical motor installation design of the Depamu pump, which ensures that even in the unlikely event of a seal failure, fluid containment is maintained .

The Engine of Precision: Transmission and Control

The Depamu pump’s remarkable accuracy begins with its patented transmission mechanism. The system employs an integrated sleeve adjustable eccentric drive, which converts the rotary motion of the motor into the precise reciprocating movement required for pumping . This design is celebrated for its simplicity and reliability, allowing for stepless stroke length adjustment across a range of 0% to 100% . Such a wide adjustment range gives operators granular control over the flow rate, enabling the pump to adapt to varying process demands with minimal downtime.

The sophistication of the control system extends to its calibration. The DP(M)ZA model boasts a metering accuracy of ±0.5% across its adjustment range of 10% to 100% . This high degree of precision is bolstered by high-precision inlet and outlet check valves that ensure the fluid's flow path is consistent and that slippage (the backward flow of fluid) is minimized . Furthermore, the hydraulic system itself is self-regulating, incorporating an internal safety valve and compensation valve that manage automatic air discharge and oil replenishment, ensuring the hydraulic fluid's performance remains optimal and consistent .

The Multi-Head Architecture: A Symphony of Flow

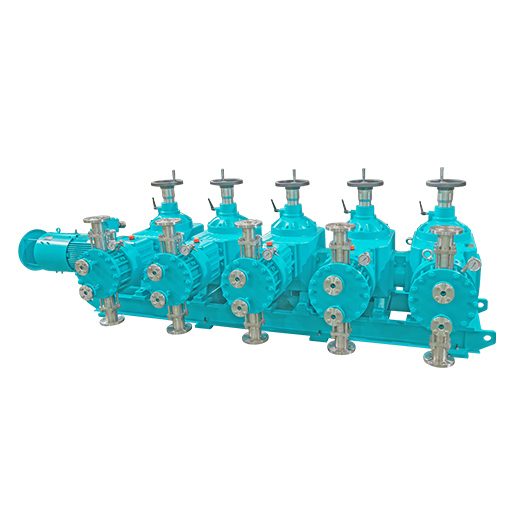

The most distinctive feature of this Depamu pump is its multi-head configuration capability. The base unit is designed to accommodate not just one, but up to twelve pump heads connected in parallel . This modularity transcends the functionality of a simple pump, transforming it into a versatile fluid management system.

This multi-head design serves two primary operational strategies:

1. Pulsation Dampening: By connecting multiple heads to pump the same medium, the overall flow stream becomes much smoother. The discharge pulses from each head can be phased to overlap, effectively canceling out the inherent pulsation of Reciprocating Pumps. This is particularly beneficial in applications requiring a steady, continuous flow, such as feeding a reactor or a filter press.

2. Proportioning and Blending: The multi-head design allows the pump to function as a proportioning unit. With each pump head capable of independent flow adjustment, different media can be drawn from separate sources and combined in a precise ratio at the discharge manifold . This eliminates the need for external mixing equipment and complex control loops, simplifying the process and improving reliability.

Technical Specifications and Diverse Applications

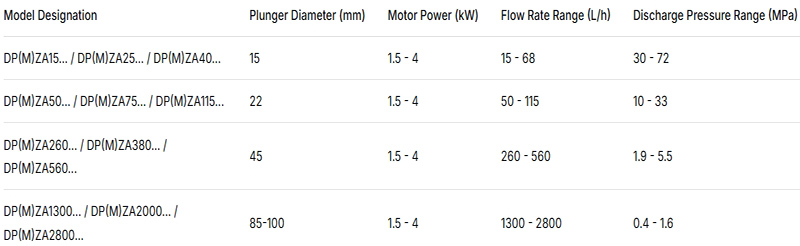

The Depamu DP(M)ZA series is engineered for demanding industrial environments. The extensive model range accommodates a wide spectrum of flow rates and pressures, demonstrating the pump's adaptability. For instance, models are available for handling flow rates from as low as 15 liters per hour to over 2,800 liters per hour, capable of handling discharge pressures that range from 54 MPa to 0.4 MPa depending on the plunger diameter and motor power . The table below illustrates the relationship between plunger diameter, motor power, and the resultant flow and pressure capabilities for certain model variants.

The robust construction and versatile performance of the Depamu pump make it a mainstay in a multitude of sectors. Its proven reliability is particularly valued in the chemical, petrochemical, and oil and gas industries, where it handles high-viscosity fluids and operates under high pressure . It is equally vital in less severe but equally precise applications, such as in water treatment, power generation, and metallurgy . The pump's ability to handle a wide array of fluids, from volatile hydrocarbons to viscous slurries, underscores its standing as a universal solution for complex fluid handling challenges .

Conclusion

The Depamu Multi-Head Hydraulic Diaphragm Metering Pump is more than just a mechanical device; it is a testament to the evolution of precision engineering in the industrial age. By integrating the inherent safety of diaphragm technology with the precision of a hydraulically actuated system and the modular flexibility of a multi-head design, Depamu has crafted a solution that meets the highest standards of safety, accuracy, and operational efficiency. As industries continue to demand more from their processes, the robust and intelligent design of the Depamu pump positions it as an essential tool for engineers seeking to optimize performance, reduce risk, and maintain a competitive edge in the global marketplace
