Depamu Mechanical Diaphragm Pumps for Industrial Fluid Transfers
Abstract
In the landscape of industrial fluid handling, the demand for precision, reliability, and leak-free operation has never been greater. Depamu mechanical diaphragm pumps have emerged as a significant solution in this domain, offering a sophisticated blend of metering accuracy, robust construction, and operational safety. This article provides a comprehensive examination of Depamu's mechanical diaphragm pump technology, exploring its working principles, key features, performance parameters, and diverse industrial applications, establishing its role in advancing fluid transfer efficiency.
Introduction
Industrial fluid transfer operations require equipment that can handle diverse media—from corrosive chemicals and abrasive slurries to precise water treatment additives—under varying pressure and temperature conditions. Among the available pumping technologies, mechanical diaphragm pumps occupy a distinct niche, valued for their ability to deliver accurate metering without the leakage risks associated with traditional seal-based designs. Depamu (Hangzhou) Pumps Technology Co., a manufacturer with over 17 years of industry presence, has developed a comprehensive product line of mechanical diaphragm Metering Pumps designed to meet these industrial demands. This article explores the technical architecture, performance characteristics, and application versatility of these pumps.

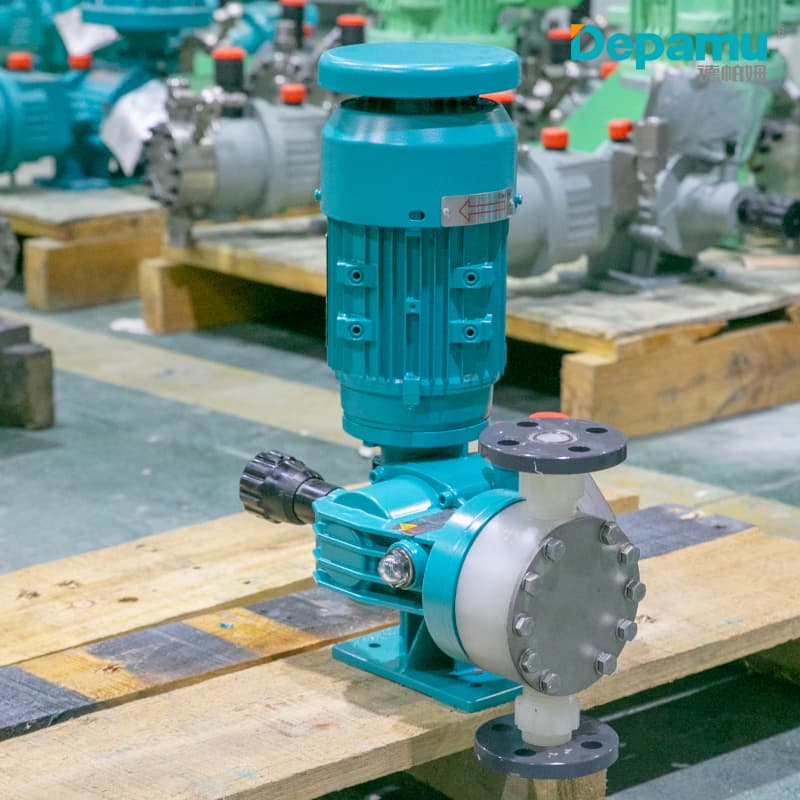

The Operating Principle: Converting Rotation into Precise Reciprocation
The fundamental mechanism governing Depamu's mechanical diaphragm pumps centers on the conversion of rotational motion into precisely controlled reciprocating movement. The motor drives a worm gear pair, which through an eccentric mechanism transforms the rotary motion into the reciprocating motion of a slide rod. This slide rod directly drives the mechanical diaphragm, inducing periodic deformation that alternately expands and contracts the pumping chamber, thereby achieving fluid suction and discharge.
This direct mechanical drive distinguishes these pumps from hydraulically-actuated diaphragm designs, offering advantages in structural simplicity and maintenance convenience. The absence of complex hydraulic fluid systems reduces potential failure points while maintaining the core benefit of leak-free operation—the static seal of the diaphragm replaces the dynamic seal of a plunger pump, effectively eliminating fluid leakage during transportation.
Core Design Features and Engineering Excellence
Precision Metering and Flow Control
The hallmark of Depamu's pump series is their metering precision. The DP(M)WAA hydraulic mechanical diaphragm pump, for instance, achieves a metering accuracy of ±0.5% with a flow rate adjustment range of 10% to 100%. For applications where slightly lower precision is acceptable, the DP-Series Mechanical Diaphragm Metering Pumps provide a steady-state accuracy of ±2% with a 10:1 turndown ratio.
Flow rate adjustment can be accomplished through multiple control methods: manual stroke adjustment, electric actuation, pneumatic modulation, and frequency conversion adjustment. Importantly, adjustments can be performed whether the pump is operating or shut down, providing operational flexibility for dynamic process conditions. The patented integrated sleeve adjustable eccentric transmission mechanism enables stepless stroke adjustment across the 0%-100% range, giving operators precise control over fluid delivery.
Materials and Corrosion Resistance
Industrial fluid handling often involves aggressive chemical environments. Depamu addresses this through extensive material options for wetted parts: 304 stainless steel, 316 stainless steel, 316L stainless steel, PVC, PVDF, PP, and PTFE. The PTFE diaphragm is particularly noteworthy—it can accommodate fluid temperatures up to 80°C, while PVC-limited configurations are rated to 40°C.
The double PTFE diaphragm configuration is a particularly advanced design feature. These diaphragms provide excellent corrosion resistance and leakage prevention, with a diaphragm status monitoring system available that signals upon rupture of the first diaphragm. This allows the pump to continue operating temporarily while a replacement is scheduled, preventing unplanned downtime and avoiding contamination of the process fluid.
Reliability and Maintenance
Industrial equipment reliability directly impacts operational costs. Depamu has engineered extended service life through several design elements. High-performance plungers, specialized packing materials, and sealing components, combined with oil-immersion bath lubrication for the transmission mechanism, contribute to the pump's longevity.
The maintenance intervals are clearly specified: under discharge pressures ≤1.0 MPa, service intervals are 4,000 hours; under ≤0.7 MPa, the interval extends to 8,000 hours. The recommended lubricant, industrial gear oil ISO VG 220, maintains performance across temperatures ranging from -35°C to +100°C.
Self-cleaning check valves further reduce maintenance requirements by preventing particulate accumulation that could compromise metering accuracy or cause flow restriction.
Product Line Architecture
Depamu offers a structured product portfolio organized to match diverse flow and pressure requirements:
DPMFXWA Series: Precision Dosing
The DPMFXWA series is engineered for applications requiring moderate flows with higher pressure capability. With a maximum flow rate of 450 L/h and discharge pressures up to 1.2 MPa, this series suits chemical dosing applications where pressure is a key consideration. The cast aluminum housing provides effective heat dissipation, while surface plastic-spray treatment enhances corrosion resistance.
2DPMFXAA Series: High-Flow Transfer
For large-scale fluid transfer operations, the 2DPMFXAA series delivers substantial capacity: maximum flow rates up to 3,200 L/h, though with a lower maximum discharge pressure of 0.6 MPa. The two-cylinder configuration provides smoother flow characteristics with minimized pulsation, benefiting processes where flow stability is critical. The design also permits separate flow adjustment for each pump head, enabling the transport of different media or dual-stream operations.
DP(M)WAA Series: Versatile Hydraulic-Mechanical Hybrid
The DP(M)WAA series represents a hybrid approach incorporating hydraulic diaphragm elements within a mechanical drive framework. It includes internal safety valves and compensation valves that enable automatic air discharge and oil replenishment, enhancing reliability in demanding applications. Multiple models within this series accommodate flow rates from 1 L/h to 305 L/h across discharge pressures from 0.7 MPa to 61.7 MPa, making it suitable for both precise low-flow dosing and high-pressure transfer.
Applications Across Industries
Water and Wastewater Treatment
Municipal and industrial water treatment represents a primary application for Depamu's mechanical diaphragm pumps. The accurate metering capability ensures precise addition of treatment chemicals—coagulants, flocculants, pH adjusters, and disinfectants—while the leak-free design prevents contamination of treated water. The pumps' ability to handle acid-base fluids safely is particularly valuable in pH adjustment and neutralization processes.
Chemical Processing
Chemical manufacturing facilities require pumps that can handle aggressive fluids while maintaining precise flow control. The availability of multiple materials of construction—including 304, 316, 316L, PVC, PVDF, PP, and PTFE—ensures compatibility with a wide spectrum of chemicals. The mechanical diaphragm design prevents leakage, a critical safety consideration when handling hazardous chemicals.
Industrial Manufacturing
In manufacturing processes ranging from surface finishing to textile processing, controlled chemical addition is essential. The pumps' ability to transport acid and alkaline fluids safely, combined with their precise metering capability, makes them suitable for applications such as plating bath replenishment, pH control, and additive dosing.
Fluid Transfer with Variable Demands
The DP-Series design allows installation directly above solution tanks, providing installation flexibility and simplifying system design. Multiple head configurations enable the creation of proportioning pump systems where different fluids are transported and dosed independently, supporting complex blending and formulation processes.
Performance Considerations
When selecting a Depamu mechanical diaphragm pump, engineers should consider several key parameters:
Pressure and Flow Requirements: The pump selection should align with required discharge pressure and flow rate. The DPMFXWA series excels in higher-pressure (1.2 MPa) applications with moderate flows (≤450 L/h), while the 2DPMFXAA series is better suited for high-flow (up to 3,200 L/h) but lower-pressure (0.6 MPa) operations.
Fluid Temperature and Corrosivity: Fluid compatibility depends on both the wetted material selection and operating temperature. PVC components are limited to 40°C, while PTFE components extend to 80°C; high-temperature applications may require special consultation.
Suction Conditions: All Depamu mechanical diaphragm pumps require positive inlet pressure—there is no suction lift capability indicated in the specifications—and a maximum inlet pressure of 2 bar is specified.
Safety Devices: Since the pumps lack internal relief devices, installation of an external relief valve on the outlet pipeline is recommended.
Conclusion
Depamu mechanical diaphragm pumps represent a mature and technically refined solution for industrial fluid transfer and metering applications. The combination of direct mechanical drive, corrosion-resistant materials, flexible flow adjustment, and extended maintenance intervals provides a value proposition suited to demanding operational environments.
The product range—from the high-pressure DPMFXWA series to the high-flow 2DPMFXAA series, and the versatile DP(M)WAA series—enables engineers to select pumps precisely matched to their specific pressure, flow, and chemical compatibility requirements. With metering accuracy reaching ±0.5% in the most precise configurations, these pumps are particularly well-suited for processes where dosing accuracy directly impacts product quality or regulatory compliance.
As industrial processes continue to demand greater efficiency, safety, and precision, Depamu's mechanical diaphragm technology appears well-positioned to meet these evolving requirements through continued engineering refinement and manufacturing excellence
