The Depamu Horizontal Marine Bilge Screw Pump: A Technical Overview for Modern Vessel Cleaning
In the demanding environment of maritime operations, efficient and reliable bilge management is paramount. The bilge, the lowest compartment of a ship, inevitably accumulates a mixture of seawater, oil, fuel, lubricants, and various solid debris. The primary function of a bilge pump is not merely to remove this water but to ensure the vessel's stability, prevent free-surface effect, and comply with stringent environmental regulations regarding the discharge of oily water. Among the various technologies available for this critical task, the positive displacement screw pump stands out for its unique capabilities, with the Depamu Horizontal Marine Bilge Screw Pump representing a sophisticated solution tailored for vessel cleaning and fluid transfer.
The Challenge of Bilge Water
Bilge water is a complex, multiphase fluid. It presents a severe challenge to conventional pumping technologies like centrifugal pumps due to its variable viscosity, the presence of solid particulates, and a high percentage of entrained air and gases. When a centrifugal pump encounters these conditions, its performance degrades rapidly, often leading to cavitation, vapor locking, and a significant drop in efficiency. This necessitates constant monitoring and maintenance, which increases operational costs and downtime. The bilge environment demands a pump that can provide consistent, self-priming suction, handle a mixture of fluids and solids without clogging, and operate reliably under the pitching and rolling conditions of a vessel at sea.
Principle of Operation: The Progressive Cavity Pump
The Depamu Horizontal Marine Bilge Screw Pump is a type of single-screw pump, often referred to as a progressive cavity pump. Its operation is founded on a simple yet highly effective principle: a single helical metal rotor turns eccentrically inside a double-threaded elastomeric stator. This interaction forms a series of sealed, continuous cavities that progress linearly from the suction to the discharge end of the pump. As the rotor turns, these cavities move fluid forward, providing a smooth, consistent, and virtually pulsation-free flow regardless of the discharge pressure. This design is a key differentiator from Twin-Screw Pumps, which use two intermeshing screws and are often employed for clean, lubricating fluids or high-flow cargo transfer. The progressive cavity design of a single-screw pump is ideally suited for the challenging, non-homogeneous nature of bilge water.
Design and Construction for Marine Durability

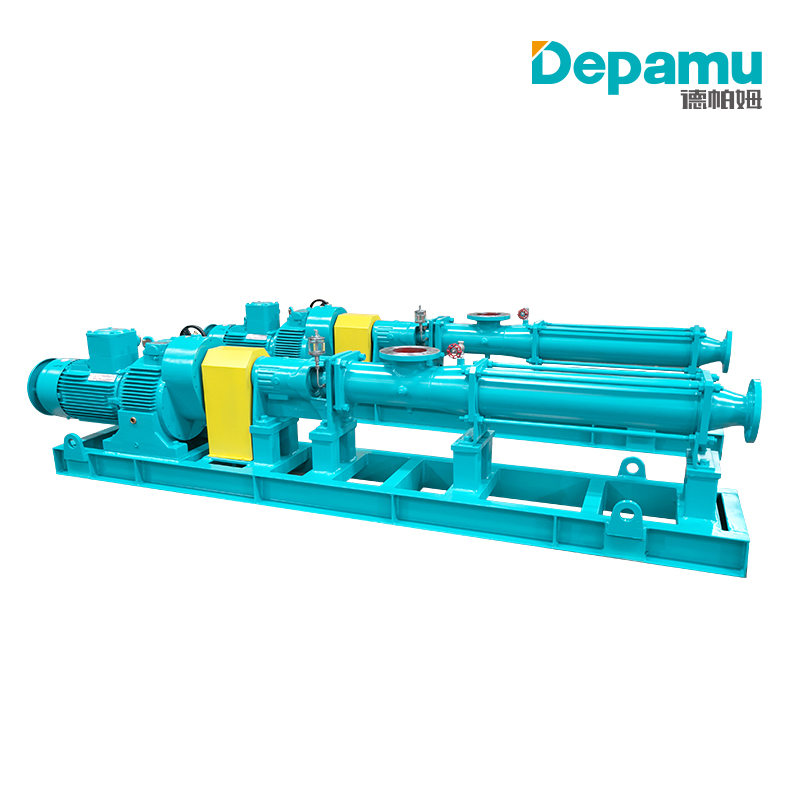

The "Horizontal" configuration of the Depamu pump is a deliberate design choice for marine applications. It facilitates straightforward installation in the often-constrained spaces of a ship's engine room or bilge well, while also allowing for easy access during maintenance. This is a significant advantage over vertical pumps, which can be more difficult to service in place.
Based on available product specifications, Depamu's pumps are engineered with a focus on durability and adaptability to harsh conditions. While specific details on the Depamu model’s material construction are limited, comparable marine single-screw pumps from reputable manufacturers often feature wetted parts constructed from robust materials like bronze and AISI 316 stainless steel to withstand the corrosive effects of saltwater and the abrasive nature of bilge sludge. Furthermore, the design must be resilient to the marine environment, with features to resist vibrations, aggressive salty atmospheres, and the vessel's various angles of inclination during operation, which are critical certification requirements for marine pumps.
Technical Specifications and Performance
The Depamu single-screw pump is designed to handle a wide spectrum of fluid characteristics, a crucial requirement for vessel cleaning. It can efficiently pump media with a broad range of viscosities, from very thin liquids to thick sludges (1 mPas to 1,000,000 mPas), and can handle fluids with a significant solid content, with some models capable of passing particles up to 30mm in size. This robust solids-handling capability is essential for evacuating bilge water that often contains rust, scale, and other debris.
A critical advantage of this pump is its exceptional self-priming capability. It is rated to have a suction lift of up to 8 meters of water column, allowing it to effectively "pull" fluid from the deepest parts of the bilge and evacuate air and gas plugs without losing prime. This ability to handle gas entrainment without "vapor locking" is a distinct advantage over many other pump types and is vital for stripping a bilge well completely dry. The pump can also operate in either direction, simplifying system design for both filling and draining operations.
Advantages for Vessel Cleaning
The Depamu Horizontal Marine Bilge Screw Pump offers a multitude of operational benefits specifically for vessel cleaning:
-
Low Shear and Non-Pulsating Flow: The progressive cavity design ensures that the fluid is moved gently, without churning or shearing. This is important for maintaining the integrity of oil-water emulsions, which can be critical for the efficiency of downstream bilge water treatment systems.
-
Energy Efficiency: Positive displacement pumps maintain high volumetric efficiency even with viscous fluids, often resulting in up to 30% lower power consumption compared to other pump types, as noted in similar marine pump certifications. This translates to lower fuel consumption and reduced operating costs.
-
High Reliability and Low Maintenance: The simple design of the screw pump, with fewer moving parts compared to centrifugal pumps with complex impellers, results in superior reliability. Its long service life, quiet operation, and ability to run dry for short periods without immediate damage make it a robust and dependable asset on a vessel.
-
Compliance with Regulations: By providing reliable, efficient, and leak-free pumping, the Depamu pump aids in compliance with MARPOL regulations. Effective management of bilge water prevents illegal discharges and helps ensure the ship meets environmental standards.
Certification and Service
For a marine pump, certification is non-negotiable. While the search results do not specify the Depamu brand's specific marine classification certificates, the technical requirements for such pumps are stringent. They must be approved by bodies like the Russian Maritime Register of Shipping (RMRS), as seen in comparable SP series pumps, or other major classification societies (e.g., DNV GL, Lloyd’s Register). The ability to integrate easily into existing ship systems, quick maintenance with readily available spare parts, and reliable sealing are also essential characteristics for pumps used in this sector, reducing downtime and ensuring the vessel’s continuous operation.
Conclusion
The Depamu Horizontal Marine Bilge Screw Pump represents a technologically advanced and practical solution to the complex challenges of vessel cleaning and bilge management. Its progressive cavity design offers the powerful self-priming suction, robust solids handling, and low-shear flow essential for effective bilge water removal. Built with the durability required for the harsh marine environment and capable of handling a wide range of fluids, it stands as a reliable and efficient alternative to traditional pump technologies. For ship operators seeking to improve bilge system performance, reduce maintenance costs, and enhance environmental compliance, the Depamu Screw Pump presents a compelling choice
