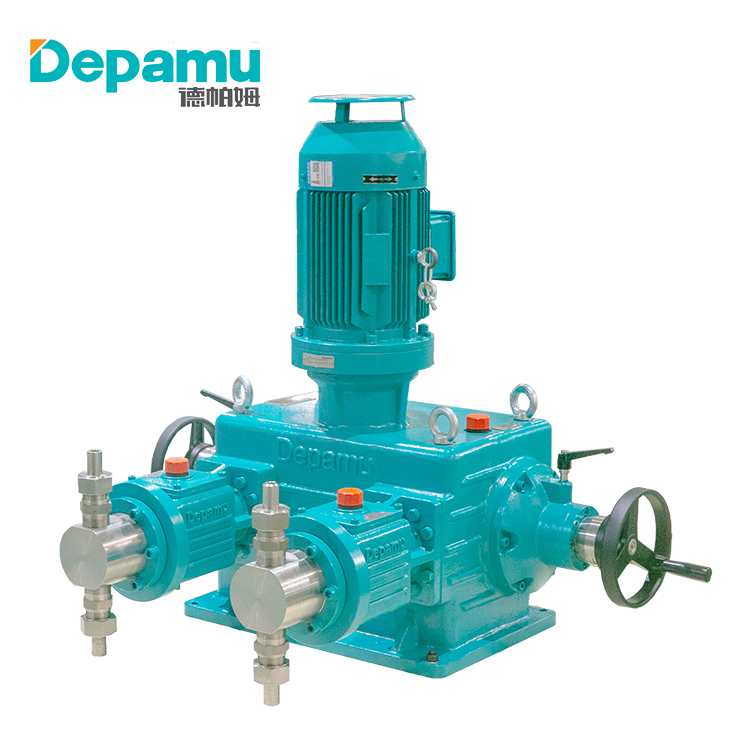

The Depamu Multi-Head Metering Piston Plunger Pump: A Technical Overview

In the complex landscape of industrial fluid handling, precision and reliability are not merely desirable attributes but absolute necessities. Industries ranging from petrochemical processing to pharmaceutical manufacturing require equipment capable of delivering exact volumes of fluid under high pressure, often in demanding and corrosive environments. The Depamu multi-head metering piston plunger pump represents a sophisticated solution to these challenges, offering a combination of high-precision metering, robust construction, and operational flexibility. This article provides a comprehensive examination of this equipment, detailing its definition, working principles, key features, technical specifications, and industrial applications.

Definition and Core Identity

The Depamu multi-head metering piston plunger pump is a positive displacement, reciprocating pump designed for high-accuracy flow control. The "Depamu" designation identifies the manufacturer, Depamu (Hangzhou) Pumps Technology Co., Ltd., a Chinese company with significant experience in the pump manufacturing sector . The term "multi-head" is crucial to its identity; it signifies that the pump can be configured with multiple pumping units, or "heads," connected in parallel. This configuration can involve up to twelve pump heads, allowing for increased flow capacity, flow pulsation reduction, or the proportional mixing of different fluids .

The terms "metering," "piston," and "plunger" further define its nature. It is a Metering Pump, meaning its primary function is to deliver a precise, adjustable flow rate. The pump achieves this through the reciprocating motion of a piston or plunger within a cylinder. In this context, "plunger pump" typically indicates that the plunger is the only component in contact with the process fluid, utilizing high-performance seals to ensure a leak-free operation .

Working Principle and Core Mechanisms

The fundamental operating principle of the Depamu Plunger Metering Pump is based on positive displacement. The pump's operation is cyclical, driven by the reciprocating movement of the plunger within its working chamber .

The Suction and Discharge Cycle: As the plunger retracts, it increases the volume of the working chamber, creating a vacuum that draws fluid in through the inlet check valve. During this suction stroke, the outlet check valve remains closed to prevent backflow. Conversely, when the plunger advances, it decreases the chamber volume, forcing the fluid out through the outlet check valve while the inlet valve closes .

Flow Rate Adjustment and Accuracy: The pump's ability to meter fluid with high accuracy is largely due to its patented integrated sleeve adjustable eccentric transmission mechanism . This mechanism enables a continuous, stepless adjustment of the plunger's stroke length from 0% to 100%. This direct control over the displacement per stroke allows for precise regulation of the flow rate. The manufacturer specifies a metering accuracy of ±0.5% within the 10% to 100% adjustment range, a level of precision critical for many industrial processes .

Multi-Head Configurations: The "multi-head" capability provides significant operational advantages. When multiple heads are connected in parallel, they can be used to pump the same fluid to a common manifold. This arrangement effectively reduces flow pulsation, ensuring a smoother, more continuous output. Alternatively, each head can be used to pump a different fluid, allowing the system to function as a proportioning pump that mixes multiple components in a controlled ratio .

Key Features and Technological Advantages

The Depamu pump series integrates several key features that contribute to its performance and reliability.

Precision and Control: At the heart of its precision is the aforementioned stroke adjustment mechanism, which is simple yet reliable. The flow rate can be controlled manually, electrically, pneumatically, or via frequency conversion, offering flexibility for both local and remote automated control systems .

Durability and Longevity: The pump is engineered for demanding service. It features high-performance plungers and specially designed packing and sealing components made from imported materials, which are chosen for their long service life and excellent sealing performance . Furthermore, the transmission mechanism is protected by oil-immersion lubrication, ensuring reliable operation over extended periods .

Robust Construction and Versatility: The pump features a simple mechanical structure, which contributes to its ease of maintenance and high cost-effectiveness . For applications involving highly corrosive fluids, the pump heads can be manufactured from a wide range of specialized materials, including various grades of stainless steel (304, 316, 316L), high-alloy steels like 904L and Hastelloy C, and even high-polymer materials . This material flexibility makes it suitable for handling a diverse array of chemicals.

Technical Specifications and Performance Parameters

The Depamu plunger metering pump series covers a wide performance envelope, making it adaptable to various industrial needs .

• Flow Rate Range: The flow rate per single pump head can range up to 12,100 liters per hour (L/H) .

• Pressure Range: The pump can operate at discharge pressures up to 228 MPa, highlighting its capability for high-pressure applications .

• Plunger Diameter: The plunger diameter, a key factor in determining flow capacity, can range from 2 mm to 150 mm .

• Power and Drive: The pumps are driven by electric motors with various power ratings and use an integrated worm gear as a variable-speed transmission mechanism, known for its low noise and high efficiency .

• Number of Heads: A single pump unit can be configured with up to 12 pump heads in parallel .

Industrial Applications

Given their performance characteristics, Depamu multi-head metering pumps are utilized across a broad spectrum of industries. Their primary applications are in processes that require precise, reliable, and often high-pressure injection of fluids. Key sectors include chemical and petrochemical processing, natural gas and oil field operations, and foaming, electricity, and metallurgy industries . They are particularly well-suited for handling challenging fluids such as those with high viscosity, high pressure, or high temperature .

It is important to note that standard Depamu metering pumps do not include an internal safety relief device. Therefore, it is strongly recommended that users install an external safety relief valve on the outlet pipeline to protect the pump and the system from overpressure events .

Conclusion

The Depamu multi-head metering piston plunger pump is a sophisticated and highly engineered piece of industrial equipment. It successfully integrates the fundamental principles of reciprocating positive displacement with advanced design features, such as the patented eccentric stroke adjustment mechanism and multi-head configurability. The result is a versatile and reliable pump that delivers high metering accuracy (±0.5%), operates at extreme pressures (up to 228 MPa), and is constructed from materials suitable for handling aggressive chemicals. Through its combination of precision, durability, and flexibility, it provides an essential solution for critical fluid handling applications across a wide range of demanding industries, from chemical processing to oil and gas
