Precision Under Pressure: The Depamu Plunger Reciprocating Pump for BDO Chemical Injection

Abstract

In the complex ecosystem of modern chemical processing, the accurate injection of additives often determines the difference between premium-grade output and costly off-spec production. Butanediol (BDO) serves as a critical intermediate in the production of engineering plastics, polyurethanes, solvents, and elastic fibers. However, its physical properties—specifically low viscosity, high vapor pressure, and hygroscopic nature—pose unique challenges for metering and injection systems. This article examines the engineering specifications, operational advantages, and application-specific design of the Depamu reciprocating plunger pump, particularly the HD series, as a optimal solution for high-pressure BDO chemical injection in petrochemical and polymer synthesis environments.

1. Introduction: The Critical Role of BDO Injection

1,4-Butanediol is a foundational chemical intermediate. In the production of Polybutylene Terephthalate (PBT) or Polyurethane (PU), the ratio of BDO to co-reactants like Dicarboxylic acids or MDI (Methylene Diphenyl Diisocyanate) must be maintained with extreme precision. A deviation of mere percentages can alter the molecular weight of the final polymer, leading to brittle plastics or sticky elastomers.

In typical production workflows, BDO must be injected into high-temperature, high-pressure reactors. The injection pump must overcome reactor back-pressure while delivering a specific volumetric flow rate. This is where the Depamu reciprocating pump distinguishes itself. Designed in accordance with the American Petroleum Institute standard (API 674), these pumps are engineered for the "severe duty" cycles typical of continuous chemical manufacturing .

2. Why BDO Requires Specialized Pumping Technology

Before analyzing the pump hardware, it is essential to understand the fluid dynamics of Butanediol.

1. Low Viscosity & Lubricity: At standard temperatures (20°C), BDO has a viscosity of approximately 90-100 cP. While not as thin as water, it is significantly less viscous than hydraulic oils. This low viscosity can lead to poor lubrication of traditional packing glands, resulting in premature wear of the plunger seals.

2. Hygroscopic Nature: BDO absorbs moisture readily. In a pumping system, absorbed water can vaporize at high temperatures (cavitation) or degrade the fluid properties. The pump system must therefore be sealed against atmospheric intrusion.

3. Temperature Sensitivity: BDO is often stored heated (30-40°C) to prevent solidification. The pump must handle thermal expansion without binding.

Standard centrifugal pumps fail in this scenario because they cannot generate the required high differential pressure (often exceeding 15-30 MPa) and lack volumetric consistency. Conversely, the positive displacement nature of a plunger reciprocating pump ensures that regardless of system pressure fluctuations (within limits), a fixed volume of fluid is displaced per stroke.

3. The Depamu HD Series: Engineering for High-Pressure Duty

Depamu (Hangzhou) Pumps Technology Co., Ltd. has positioned the HD series (including HD3E(M), HD5P(M), and HD3N(M)) as the flagship solution for "Butanediol charging" . These are triplex or multiplex plunger pumps specifically configured for process service.

3.1. Flow and Pressure Capabilities

The HD series is not a one-size-fits-all solution; it is highly configurable. For BDO injection, the operational sweet spot typically lies in high-pressure, moderate-flow regimes.

• HD3E(M) Series: This model is particularly suitable for direct BDO injection. It offers a flow range of 0.76 to 10.74 m³/h and a pressure range of 3.1 to 50.9 MPa (approx. 450 – 7,380 PSI) .

• HD5P(M) Series: For larger polymer plants requiring higher throughput, this variant scales up to 96.89 m³/h at pressures up to 104 MPa .

Engineering Insight: The ability to maintain high pressure at low flow rates is critical for BDO. If a plant is running at partial capacity, the pump must still generate enough pressure to open the reactor check valves. The linear correlation between motor speed (via VFD) and flow rate in these pumps allows for this turndown without losing pressure capability.

3.2. The Plunger and Packing Interface

The "heart" of a plunger pump is the interface between the reciprocating plunger (usually ceramic or stainless steel) and the packing (seals).

Depamu addresses the low-lubricity issue of BDO through material selection.

• Ceramic Plungers: Many Depamu configurations utilize high-purity ceramic plungers . Ceramics offer exceptional hardness (Rockwell > HRA 88) and a mirror-like surface finish (Ra < 0.1μm). This smooth surface reduces friction coefficients against the PTFE packing rings, allowing the pump to handle BDO without "squealing" or overheating.

• Packing Rings: Depamu utilizes specialized chevron packing rings designed for chemical service. Unlike standard water injection packs, these are formulated with appropriate fillers to maintain a fluid film even when pumping low-viscosity diols.

4. Technical Specifications for BDO Service

When specifying a Depamu plunger pump for a BDO project, engineers focus on specific parameters to ensure compatibility.

4.1. Material Compatibility

While BDO is not acutely corrosive to 316 Stainless Steel (the standard wetted material), trace impurities or high temperatures can cause issues. Depamu offers a range of metallurgies.

• Standard Wetted Parts: 304 or 316 Stainless Steel. Suitable for pure BDO at ambient temperatures.

• Upgraded Options: For high-purity BDO applications where metallic ion contamination must be avoided (e.g., electronics-grade chemical production), Depamu can supply pump heads with PTFE (Polytetrafluoroethylene) lining or Hastelloy C-276 internals .

4.2. Drive Mechanisms and Precision

The API 674 standard demands that power transmission components have a service life of at least 25,000 hours under continuous operation. Depamu achieves this via several drive configurations:

• Internal-meshing double helical gears: These provide silent, high-torque transmission.

• Inverter (VFD) Drive: For BDO injection, automatic flow control is non-negotiable. The integration of a Variable Frequency Drive (VFD) allows the plant's Distributed Control System (DCS) to send a 4-20mA signal directly to the pump motor, adjusting the BDO flow rate in real-time to match the reactor's demand.

5. The Dosing Skid Integration

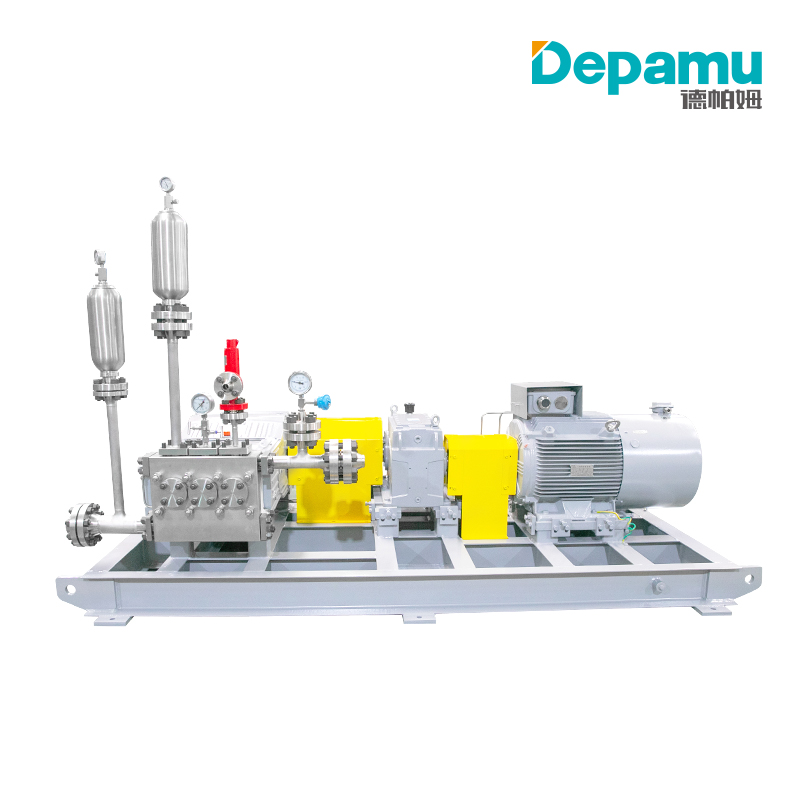

A bare pump is rarely sold for BDO injection; it is typically integrated into a Chemical Dosing Skid (also known as a Chemical Injection Package or Dosing Device). Depamu manufactures these skids in-house, providing a single-source solution .

5.1. Anatomy of the BDO Injection Skid

The complete package includes:

1. Solution Tank: Ranging from 0.5 to 20 m³. For BDO, these tanks often include nitrogen blanketing systems to prevent moisture absorption and electric heaters to maintain flowability.

2. Agitator (Mixer): While BDO is often injected neat, if it is blended with catalysts or stabilizers, a mixer ensures homogeneity.

3. The Metering Pump (Depamu HD Series): The core component.

4. Pulsation Dampener: A critical component for BDO. Reciprocating Pumps generate fluid acceleration/deceleration (pulsation). In a reactor injection line, this pulsation can cause "hammering" and damage injection nozzles. A diaphragm-type dampener smooths flow to near-laminar levels.

5. Safety Relief Valve: Protects the system from dead-heading if the reactor nozzle clogs.

6. Control Panel: PLC-based control for local or remote (DCS) operation.

5.2. Application Example: Polyurethane Production

Scenario: A chemical plant requires 2,500 L/h of BDO injected into a reactor operating at 25 MPa.

• Selected Pump: Depamu HD3E(M) with a 45mm plunger diameter, running at 180 spm.

• Configuration: Triplex plunger design to minimize pulsation.

• Result: The pump provides a steady flow at 25 MPa with a metering accuracy of ±0.5% or better .

6. Operational Advantages and Maintenance

From a plant manager's perspective, reliability is paramount. Downtime for pump repair means lost production of high-value polymers.

6.1. Leak-Free Operation (The Diaphragm Option)

Although the title specifies a "plunger pump," Depamu offers a variant that combines plunger hydraulics with a diaphragm head (Process Diaphragm Pump). In this hybrid design, the plunger pushes hydraulic oil, which flexes a PTFE diaphragm. The diaphragm, in turn, pushes the BDO. This results in zero leakage .

For highly toxic BDO applications (or when BDO is mixed with amines), this "plunger-driven diaphragm" option eliminates the environmental risk of packing leaks entirely.

6.2. Efficiency Metrics

Plunger pumps are inherently more efficient than centrifugal pumps for high-pressure, low-flow duties.

• Efficiency: Typically > 90% for hydraulic drive systems.

• NPSH (Net Positive Suction Head) Requirements: BDO has a specific vapor pressure. Depamu pumps are designed with low NPSH requirements (as low as 2-3 meters), preventing cavitation even if the BDO storage tank is slightly warm.

6.3. Predictive Maintenance

Modern Depamu skids come equipped with sensors for:

• Packing Temperature: Sudden temperature rise indicates packing wear.

• Plunger Rod Runout: Detects misalignment.

• Vibration Monitoring: Catches bearing wear early.

7. Comparative Analysis: Depamu vs. Competitors

While global giants like Lewa, Milton Roy, or Bran+Luebbe dominate the high-end chemical injection market, Depamu offers a value-engineered alternative that does not compromise on API 674 standards.

Conclusion of Analysis: For plants where initial capital expenditure (CAPEX) is a constraint but operational reliability (OPEX) cannot be sacrificed, Depamu occupies the "sweet spot." It offers the durability of a process pump without the premium price tag of a brand-name "art piece."

8. Case Study: BDO for PBAT Bioplastics

With the rise of biodegradable plastics (PBAT – Polybutylene Adipate Terephthalate), the demand for precise BDO injection has surged.

A Chinese chemical major recently deployed a set of Depamu dosing packages for a greenfield PBAT project. The challenge was injecting BDO alongside Adipic Acid and Terephthalic Acid (slurries). The BDO line required high pressure to mix with the molten prepolymer.

The Depamu Solution: A HD3N(M) series pump was selected .

• Plunger Diameter: 70mm.

• Discharge Pressure: 32 MPa.

• Drive: Frequency converter receiving signal from a Coriolis flow meter.

Outcome: The client reported that the linear flow characteristic of the Depamu plunger pump allowed for precise recipe changes on-the-fly, reducing grade transition waste by 15%.

9. Installation and Safety Considerations

To maximize the life of a Depamu plunger pump handling BDO, installers must adhere to specific protocols:

1. Suction Piping: BDO can be viscous when cold. Suction lines should be short, wide-diameter, and equipped with a booster pump if the tank is more than 3 meters away from the pump.

2. Flushing: If the pump is to be idled, it must be flushed with water or a compatible solvent (like methanol) to prevent BDO crystallization in the packing glands.

3. Seal Flush: For standard plunger configurations, an external flush may be required to cool the packing if the BDO temperature exceeds 80°C.

10. Conclusion

The Depamu reciprocating plunger pump represents a technically robust solution for the challenging application of Butanediol chemical injection. By adhering to API 674 standards, offering extensive material compatibility (from 316SS to PTFE), and supporting modular skid integration, Depamu provides engineers with a tool that ensures metering accuracy, high-pressure capability, and long-term mechanical integrity.

Whether the application is the production of Spandex fibers, engineering plastics, or biodegradable bags, the precise, pulseless, and powerful delivery of the Depamu HD series ensures that the BDO arrives at the reaction site exactly on specification, every stroke of the way.

For procurement specialists and plant operators, the Depamu pump offers a balance of Western-standard engineering with competitive manufacturing costs, making high-quality BDO injection accessible for mid-tier producers without forcing them to compromise on the API safety and performance standards that govern the chemical industry.
