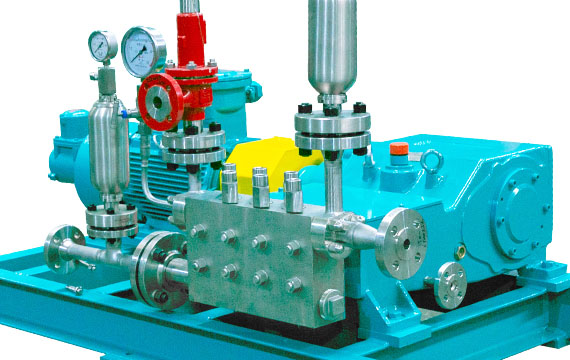

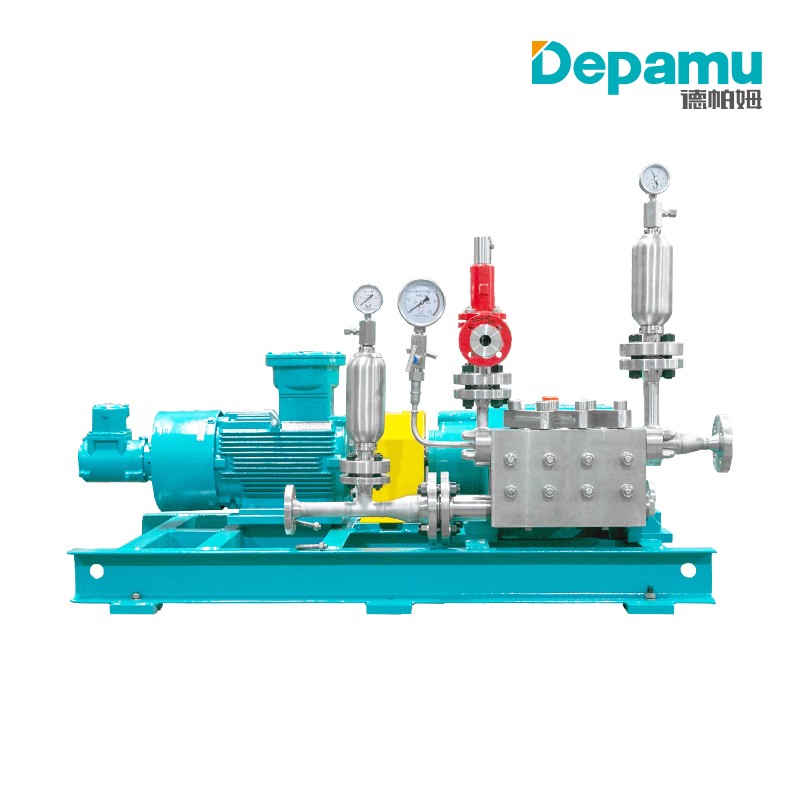

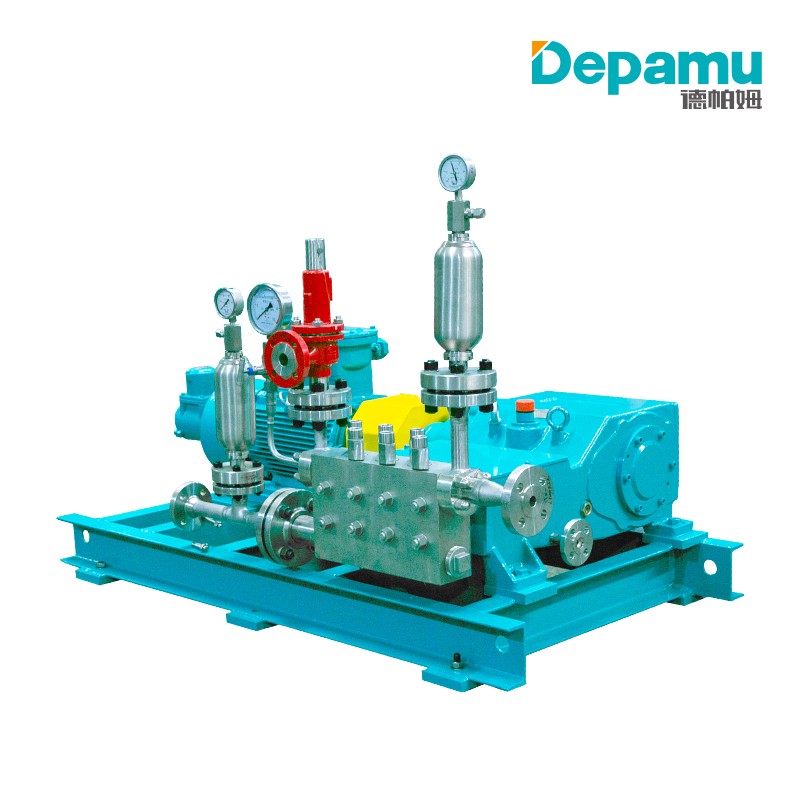

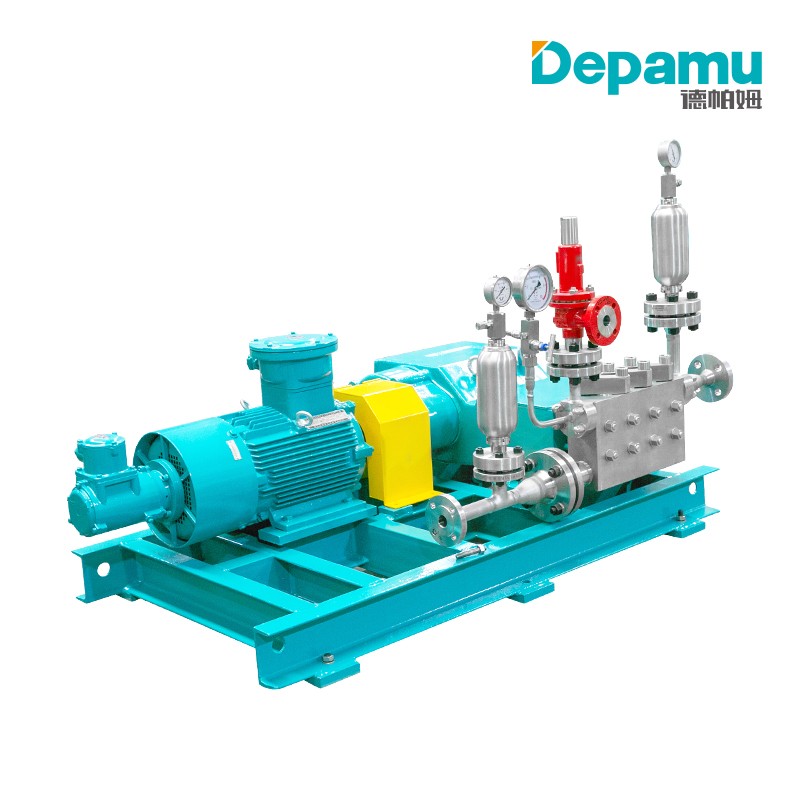

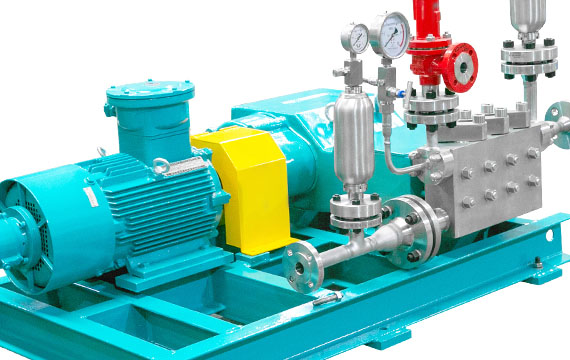

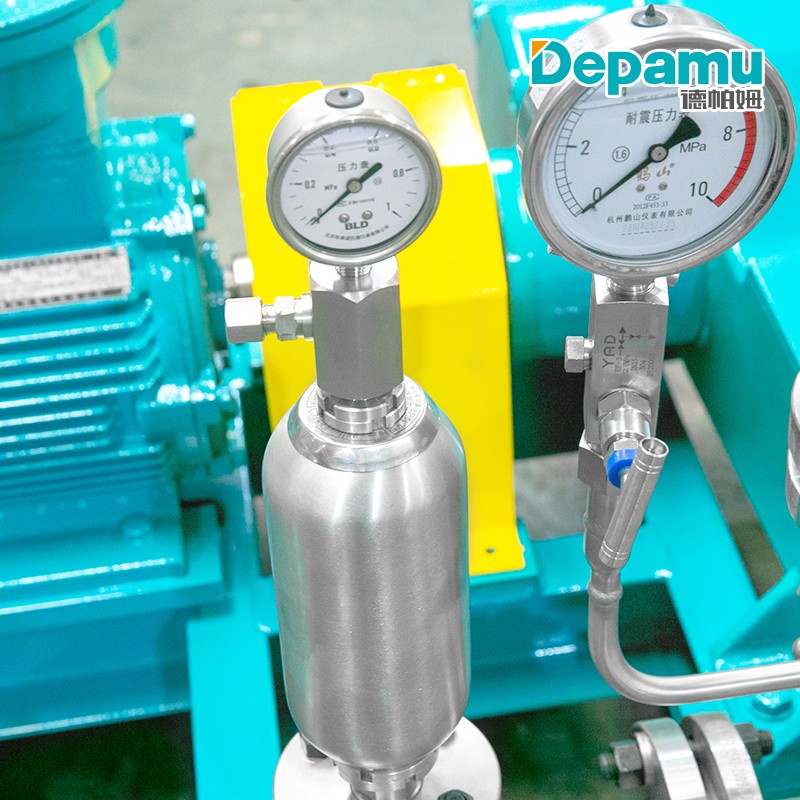

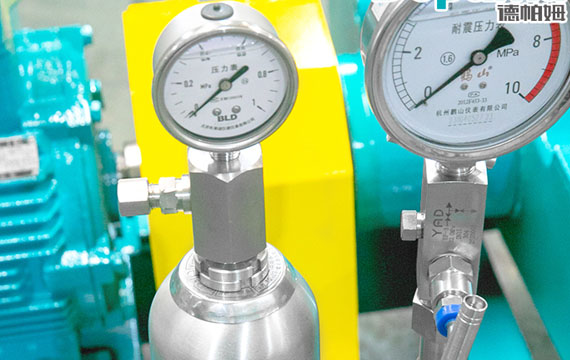

High-pressure Plunger Reciprocating Pump 3HD60F-BD1.2-5.7-XIV
High-pressure plunger reciprocating pump is a type of positive displacement pump,; the plunger directly contacts with fluid, and volume of the working chamber changes cyclically with reciprocation of the plunger, thus realizing fluid suction and discharge.
Ideal for high pressure,large capacity service
High fluid transfer efficiency, stable discharge capacity free from influence by pressure fluctuation in pump discharge pipeline
High-pres- sure plunger reciprocating pumps feature high efficiency, compact structure, stable performance, reliable and safe operation.
Long life
Plunger with hard-material spraying coating rendering good surface hardness and finish, ensuring low plunger resistance and wearing during running, thus prolonging its service life

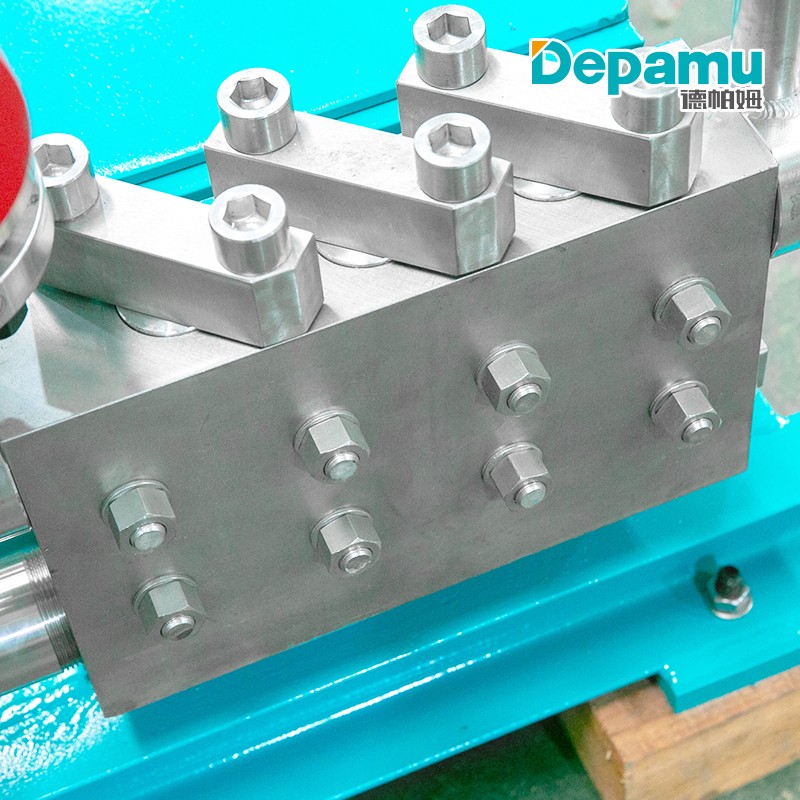

Liquid end in modular design
Applicable to transfer low-temp and high-temp fluids with a wide pumping temperature range;
Liquid end in modular design and with flexible configuration as per detailed fluid characteristics to meet various service conditions.
- Data sheet
| Capacity | 3.66~48.37m³/h |
| Pumping Temperature | -40 ~ 272℃ |
| Discharge Pressure | 3.5~62.5MPa |
| Fluid Viscosity | ≤3000cP |
| Installation Form | Horizontal, stationary |
| Drive Type | External reducer, external belt pulley |
Complete Guide
High-pressure Reciprocating Pumps 3HD60F-BD1.2-5.7-XIV
Working principle, High-pressure process diaphragm pump is a type of positive displacement pump with a fully-enclosed fluid chamber ensuring no fluid leak, and realizing fluid transfer through cyclical forced change in the volume of the working chamber.
DEPAMU reciprocating pumps, designed as per American Petroleum Institute standard (API674), can represent quality at a worldwide leading level, and many patents the company has obtained can prove that. Products can meet extremely severe service conditions, transport materials accurately and reliably. Based on solid technologies, reciprocating pumps are especially popular in various fields. High-pres- sure plunger reciprocating pumps feature high efficiency, compact structure, stable performance, reliable and safe operation.
304, 316, 316L, 2Cr13, duplex stainless steel, Ti alloy and other metals available for choice.
- Efficient and durable pump drive end in various types like external reducer, external belt pulley, internal worm gear, internal double helical gear, etc. to meet requirements under different severe service conditions.
- Liquid end is in different types of structures including plunger, planar diaphragm and hose diaphragm.
- The plunger type is comparatively simple while the diaphragm type ensures no fluid leaking and shows excellent corrosion resistance.
- Whole-process intelligent control can be realized through online real-time monitoring and control of signals for pressure, capacity, temperature rise, vibration, diaphragm rupture, etc.
- Personalized customization is available as per specific customer requirements.
- Features of External Reducer DriveFlexible and variable reduction ratio to match different pump speeds; Flexible layout with a horizontal parallel shaft reducer, horizontal intersecting shaft reducer, vertical reducer, etc. to make full use of site space; Isolation via reduction mechanism and buffering via coupling to reduce impact of pump reciprocating and cyclic load on motor; Simplified drive end structure, reduced temperature rise and simplified pump maintenance; Lowered adverse effects of high pump crankshaft load on reduction mechanism.
- Features of Internal Worm Gear DriveHigh integration with motor mounted on the top of pump casing, pump casing anchor bolts as the only component of the whole pump contacting with foundation, rendering convenient pump installation; Big single-stage reduction ratio, compact structure, small pump footprint; Stable transmission, low noise and vibration.
- Features of External Pulley DriveSimple structure, easy mounting, maintenance and adjustment; Belt elasticity to absorb pump load impact to ensure stable pump operation with low vibration; Certain overload protection to avoid motor burning due to belt slip under overload as a result of pump overload; Low maintenance and operation cost, especially suitable for long-term unattended application.
- Features of Internal Double Helical Gear DriveSelf-alignment double helical gear drive with no axial force, stable-running crankshaft without displacement, and durable bearing; Helical gear drive with high meshing coefficient, high torque, uniform power transmission ensures small impact on gear teeth and low noise during pump operation; Reduction mechanism integrated in pump casing renders high compactness and integration, thus lowering the footprint; Direct drive by double helical gear shortening power transmission link and reducing loss, to achieve a higher pump efficiency; Power input shaft directly connected with lubricating oil pump and motor with an additional motor not required under forced lubrication.

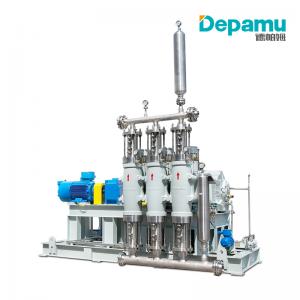

High-pressure process diaphragm pump featuring no fluid leak due to fully-enclosed fluid chamber in liquid end is highly suitable for transfer of fluids involving severe conditions as well as toxic, hazardous, flammable and abrasive fluids in various fields, such as fuel oil, liquid ammonia, ethylene oxide (EO), etc.
