Depamu Corrosion-Resistant Plunger Metering Pumps for Industrial Nitric Acid Chemical Processing
Introduction
Nitric acid stands as one of the most extensively produced industrial chemicals globally, with approximately 60 million tons manufactured annually. Approximately 80% of this production is directed toward nitrate compounds for fertilizers and explosives, while other significant applications include the manufacture of intermediates for polyurethane and polyamide production, metal pickling, and electronic component cleaning. The chemical processing industry's reliance on nitric acid creates a persistent engineering challenge: how to transfer, dose, and meter this highly corrosive mineral acid safely, accurately, and economically.
Depamu (Hangzhou) Pumps Technology Co., Ltd., established in 2003 within the Hangzhou Qiantang Area, has positioned itself as a significant solution provider to this challenge. As an ISO 9001-certified manufacturer with over two decades of industry presence, Depamu has developed a range of plunger metering pumps specifically engineered to withstand the corrosive demands of nitric acid processing environments. This article provides a comprehensive technical analysis of Depamu's corrosion-resistant plunger metering pumps, examining their design philosophy, mechanical principles, material science innovations, and application-specific advantages within industrial nitric acid chemical processing.
The Corrosion Challenge of Nitric Acid
Nitric acid presents a uniquely complex corrosion profile that distinguishes it from other industrial acids. As a strongly oxidizing mineral acid, its corrosive behavior varies dramatically with concentration, temperature, and the presence of impurities. The chemical processing industry must contend with nitric acid across a wide spectrum of concentrations—from dilute solutions used in pH adjustment to concentrated forms employed in nitration reactions and metal treatment.
The material selection for nitric acid service is critically important. Nitric acid reacts with most common metals, and standard materials such as aluminium, cast iron, and EPDM rubber are rapidly corroded when exposed to this aggressive medium. For commercial-grade concentrations, non-metallic wetted materials including polypropylene, PVDF, and PTFE are frequently recommended, while Hastelloy and titanium may be employed for more demanding applications. For concentrations exceeding 50%, technopolymers such as PVDF and ETFE offer superior chemical resistance, with Viton and PTFE representing the most resistant elastomer options.
This complex corrosion landscape demands that pump manufacturers offer not merely a single solution, but a comprehensive material strategy that can be tailored to the specific concentration, temperature, and purity requirements of each nitric acid process stream.
Depamu Plunger Metering Pump Technology
Mechanical Architecture and Working Principle

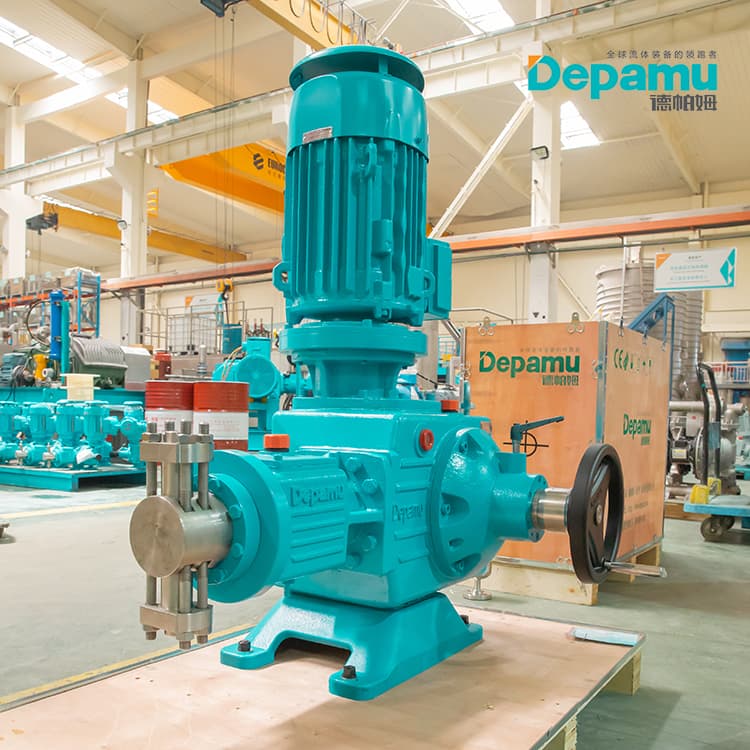

Depamu's flagship plunger metering pumps, particularly the DP(M)ZA and DP(M)DA series, are positive displacement reciprocating devices that operate on a fundamentally robust principle. The plunger directly contacts the process fluid, and the volume of the working chamber changes cyclically with the reciprocation of the plunger, enabling the inlet and outlet check valves to draw in and discharge precise volumes of fluid with each stroke.
The drive train represents a critical engineering differentiator for Depamu. The pump integrates a worm gear pair for variable speed drive, which reduces noise while maintaining high mechanical efficiency. More significantly, Depamu employs a patented integrated sleeve adjustable eccentric transmission mechanism that enables smooth, reliable stroke adjustment across the full 0-100% range. This design allows operators to perform true stepless flow adjustment while the pump is running or stationary, a capability essential for responsive process control in nitric acid dosing applications.
Precision Metering Capability
For nitric acid processing, where reaction stoichiometry and pH control often demand exact chemical quantities, metering accuracy is paramount. Depamu plunger metering pumps are engineered to achieve metering accuracy of ±0.5% within the 10-100% stroke length adjustment range. This level of precision ensures that nitric acid dosing remains consistent even as process conditions fluctuate—a critical factor in maintaining product quality in chemical synthesis, nitration reactions, and pH neutralization processes.
The high-precision inlet and outlet check valves are manufactured to tight tolerances, ensuring reliable metering accuracy and consistent fluid flow characteristics. This precision-engineered valve design minimizes pressure drop and prevents flow irregularities that could compromise dosing accuracy.
Performance Specifications
The DP(M)ZA and DP(M)DA series deliver impressive performance parameters tailored for demanding industrial applications. Single pump head flow rates reach up to 12,100 L/H, while pressure ratings extend to 228 MPa. These capabilities make the pumps suitable for both high-volume nitric acid transfer and high-pressure injection applications, such as those encountered in specialty chemical synthesis and high-pressure reactor feeding. Flow rate adjustment can be accomplished through manual, electrical, pneumatic, or frequency conversion methods, with remote automatic control achievable via electric actuator.
Material Science for Nitric Acid Corrosion Resistance
The Depamu Material Portfolio
Depamu's approach to corrosion resistance is built upon material flexibility. The pump head—the component in direct contact with the process fluid—can be manufactured from a comprehensive range of materials including 304, 316, 316L, 904, and Hastelloy C, as well as high polymer materials. This extensive material selection enables Depamu pumps to handle fluids ranging from deionized water and mild chemicals to aggressive acids, caustics, and hydrocarbon streams.
Material Selection for Nitric Acid Service
For nitric acid applications, the appropriate material depends on the specific concentration and temperature profile of the process stream. Type 304L stainless steel is the preferred material for storage tanks, piping, and pumps in many nitric acid environments, particularly for handling solutions where it can form a protective passive film. However, for more demanding conditions, 904L (super austenitic stainless steel) offers superior resistance to pitting and crevice corrosion in strongly corrosive environments, including various concentrations of nitric acid.
For extreme oxidizing and reducing acid conditions, Hastelloy C (nickel alloy) provides exceptional resistance. The material offers superior performance in nitric acid service and demonstrates resistance to both oxidizing and reducing acids, as well as wet chlorine gas. Hastelloy C-276 is particularly recommended as a material for high-temperature nitric acid and sulfuric acid applications.
Ceramic Plunger Option
For applications requiring enhanced corrosion resistance, Depamu offers pumps with ceramic plunger options in the DP(M)DA series. Ceramic materials such as zirconia provide excellent corrosion immunity to harsh media, remaining inert to acids, alkalis, chlorides, and solvents while offering thermal resistance up to 1000°C. The combination of a ceramic plunger with a Hastelloy or high-polymer pump head creates a wetted path specifically optimized for nitric acid service, where the ceramic plunger addresses the reciprocating wear and chemical attack at the dynamic seal interface.
Engineering Features for Chemical Processing
Sealing Technology
The interface between the moving plunger and the stationary pump head represents the primary site for potential leakage in plunger pump designs. Depamu employs high-performance plungers with specially engineered packing and sealing components. These advanced sealing systems deliver extended service life and maintain excellent sealing integrity even when handling aggressive chemicals under high pressure.
For applications where zero leakage is paramount—particularly when handling toxic or environmentally sensitive chemicals—Depamu's Hydraulic Diaphragm Metering Pump options offer an alternative approach. These units incorporate internal safety valves and compensation valves that enable automatic air discharge and oil replenishment, ensuring reliable operation even under varying process conditions. The hydraulic diaphragm design effectively isolates the pumped chemical from the pump's mechanical components, eliminating the risk of leakage through packing seals.
Multi-Head Configuration
Depamu plunger metering pumps can be configured with three or more pump heads in parallel, with a maximum of twelve heads possible. This configuration serves dual purposes: it can be used to transport the same medium to reduce pulsation, or to transport different media as a proportioning pump with independent flow adjustment of each pump head. In nitric acid processing, this capability is particularly valuable for processes requiring simultaneous dosing of nitric acid with other reagents, such as in mixed acid systems for stainless steel pickling or in nitration reactions where nitric acid must be combined with sulfuric acid in precise proportions.
Robust Construction
The oil-immersion lubrication system ensures reliable use of the transmission mechanism over extended service periods. The simple structure of Depamu plunger pumps facilitates maintenance and contributes to high cost performance, with convenient access to consumable components such as check valves and seals.
Applications in Nitric Acid Chemical Processing
Nitration Reactions
Nitration represents one of the most significant industrial applications of nitric acid, used in producing nitrobenzene, dinitrotoluenes, and other chemical intermediates. These reactions demand precise stoichiometric control, as incorrect nitric acid addition can lead to incomplete reaction, excessive byproduct formation, or dangerous runaway conditions. Depamu's ±0.5% metering accuracy ensures that nitric acid is delivered in the exact quantities required, while the corrosion-resistant wetted path maintains material integrity throughout the reaction campaign.
Fertilizer Production
With approximately 80% of global nitric acid production directed toward fertilizer manufacture, the ability to reliably handle this chemical at scale is fundamental to agricultural productivity. Depamu plunger metering pumps serve in the production of ammonium nitrate and other nitrate fertilizers, where they are employed for precise dosing of nitric acid into neutralization reactors. The pumps' capability for high flow rates up to 12,100 L/H per head makes them suitable for the large-scale continuous processes characteristic of modern fertilizer plants.
Metal Treatment and Pickling
Nitric acid is extensively used in metals pickling, particularly for treating stainless steel and for chemical milling operations. The corrosive effects of nitric acid are exploited for specialty applications including etching in printmaking, pickling stainless steel, and cleaning silicon wafers in electronics manufacturing. These processes require precise control of acid concentration and contact time, making accurate metering essential. Depamu's material flexibility allows selection of the optimal wetted path material for each specific pickling formulation, whether it involves nitric acid alone or mixed acid systems such as nitric-hydrofluoric acid combinations.
Specialty Chemical Synthesis
Nitric acid serves as a key reagent in the manufacture of intermediates for polyurethane and polyamide production. These synthesis pathways often involve multiple reaction stages with precise reagent addition requirements. Depamu's multi-head configuration capability enables the simultaneous and independent dosing of nitric acid and other co-reagents, streamlining process control and reducing equipment footprint.
Quality Assurance and Support
Depamu's commitment to quality is evidenced by its comprehensive certification portfolio. The company holds CE, ISO 9001, ISO 14001, and ISO 45001 certifications, and participates as a drafter of pump industry standards in China. This regulatory engagement reflects the company's technical standing within the pump manufacturing sector and its commitment to advancing industry best practices.
The company maintains long-term strategic partnerships with major state-owned energy enterprises including CNPC, Sinopec, and CNOOC, and exports products to more than 50 countries and regions including the United States, the United Kingdom, France, Germany, and Australia. This international presence provides a foundation for global service support.
Depamu offers a 7-day × 24-hour service hotline and maintains service stations to respond promptly to customer requests. The company commits to providing corresponding solutions within 24 hours of receiving a request, and after-sales teams can travel to project sites to assist with troubleshooting when necessary.
Conclusion
The industrial nitric acid chemical processing sector demands pumping solutions that can withstand one of the most challenging corrosive environments in modern manufacturing while delivering the precision and reliability that chemical processes require. Depamu's corrosion-resistant plunger metering pumps, particularly the DP(M)ZA and DP(M)DA series, address this challenge through a combination of robust mechanical design, material science flexibility, and precision engineering.
The availability of pump head materials ranging from 316L and 904L stainless steels to Hastelloy C and high-performance polymers enables tailored solutions for the full spectrum of nitric acid concentrations and temperatures. The option of ceramic plungers in the DP(M)DA series further extends corrosion resistance at the dynamic seal interface. With metering accuracy of ±0.5%, flow rates up to 12,100 L/H per head, and pressure ratings reaching 228 MPa, these pumps deliver the performance envelope required by modern nitric acid processes.
As the global chemical industry continues to demand higher efficiency, greater safety, and more precise process control, the role of reliable, corrosion-resistant metering equipment will only grow in importance. Depamu's combination of technical capability, material science expertise, and international quality certifications positions the company as a credible partner for nitric acid processors seeking to optimize their fluid handling operations.
